Pollution Control Systems
Clean Air. Safe Environment. Regulatory Compliance.
Matrix Engineering designs, manufactures, and installs high-efficiency pollution control systems
for industries, laboratories, and pharmaceutical facilities. Our systems effectively remove
harmful gases, fumes, chemical vapors, and particulate matter – ensuring worker safety and
environmental compliance. Backed by advanced in-house CNC fabrication including laser
cutting, CNC bending, and power press, every system is built for durability, performance, and
low maintenance. Since 2021, we have delivered reliable pollution control solutions across
India.

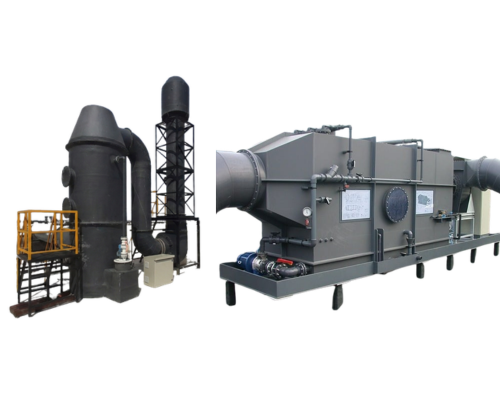

Wet Scrubbers – Vertical & Horizontal
Wet scrubbers are air pollution control devices that use liquid (typically water or chemical
solution) to capture and remove contaminants from exhaust gas streams. They are highly
effective for soluble gases, fumes, and particulate matter. Our wet scrubbers are engineered
with high-efficiency packing media, mist eliminators, and recirculation systems for optimal
performance. The contaminated gas enters the scrubber, passes through a wetted packing bed
where pollutants are absorbed or captured, and clean gas exits through a mist eliminator to
remove entrained droplets.
Types
Vertical Wet Scrubber
Counter-current flow design where gas rises upward while liquid flows downward.Maximum gas-liquid contact time.
Best For
Laboratories, small to medium industries,
height-limited spaces
Horizontal Wet Scrubber
Cross-flow or co-current design with low profile. Easy access for
maintenance.
Best For
Height-restricted areas, large industrial applications
Materials of Construction
PP+FRP (Polypropylene + Fiber Reinforced Plastic)
- Excellent chemical resistance
- lightweight
- corrosion-proof
- Chemical fumes
- acid gases
- laboratory exhaust
MS+FRP (Mild Steel + FRP Lining)
- High structural strength with internal corrosion protection
- Large industrial scrubbers
- high-temperature gases
Stainless Steel (SS 304 / SS 316)
- Superior corrosion resistance
- high temperature tolerance
- Hygienic applications, pharmaceutical
- food processing
Key Features
- High removal efficiency up to 99% for targeted pollutants
- Low pressure drop (50-150 mm WC) for energy savings
- Corrosion-resistant construction for long service life
- Recirculating pump with auto-drain and level control
- Easy maintenance access doors with viewing windows
- Custom sizes from 500 CFM to 50,000+ CFM
- Optional pH controller with auto chemical dosing
- Optional explosion-proof components for hazardous areas
Applications
- Chemical processing plants – HCl, H2SO4, HNO3, NH3, Cl2 removal
- Pharmaceutical manufacturing – solvent vapor scrubbing
- Laboratory exhaust – fume hoods and workstations
- Metal finishing and electroplating – acid mist control
- Fertilizer plants – ammonia and urea dust scrubbing
- Semiconductor manufacturing – acid gas neutralization
Technical Specifications
Flow Range
500 – 50,000 CFM
Liquid-to-Gas Ratio
2 – 5 L/m³
Operating Temperature
Up to 80°C (PP), Up to 150°C (SS)
Pressure Drop
50 – 200 mm WC
Removal Efficiency
Up to 99%
Optional Accessories:
pH controllers with auto-dosing pumps
ID / FD fans with VFD
Level controllers and alarms
Online emission monitoring port
Exhaust stack with rain hood and lightning arrestor
Dry Scrubbers – Media-Based Filtration
Dry scrubbers remove acidic or corrosive gases using a dry reaction media (activated carbon,
soda lime, or impregnated alumina). Unlike wet scrubbers, they produce no liquid waste, making
them ideal for applications where wastewater treatment is challenging or undesirable. The
contaminated gas passes through a packed bed of media where chemical adsorption,
absorption, or neutralization occurs. Dry scrubbers are particularly effective for low to moderate
gas volumes and for pollutants that are difficult to scrub with liquids.
Media Types
Activated Carbon
Target Pollutants
VOCs, organic vapors, odors, mercury
Replacement Frequency
6-12 months
Soda Lime (NaOH impregnated)
Target Pollutants
Acid gases – HCl, SO2, H2S, HF
Replacement Frequency
3-6 months
Impregnated Alumina
Target Pollutants
Fluorine, chlorine, acid gases
Replacement Frequency
6-12 months
Potassium Permanganate
Target Pollutants
Aldehydes, formaldehyde, reducing gases
Replacement Frequency
6-9 months
Materials of Construction
MS+FRP
For general industrial applications
Stainless Steel (SS 304)
For corrosive or hygienic environments
Key Features
- No liquid waste stream – zero effluent
- Simple operation and low maintenance
- Replaceable media cartridges for quick changeover
- Compact footprint – saves floor space
- Suitable for low to medium gas volumes (500 – 10,000 CFM)
- Pressure drop indicator for media saturation alert
- Modular design for easy expansion
Applications
- Semiconductor manufacturing – toxic gas scrubbing
- Battery production facilities – acid gas control
- Waste incineration plants – dioxin and acid gas removal
- Research laboratories – solvent vapor and odor control
- Hydrogen sulfide (H2S) removal from biogas
- Odor control in wastewater treatment plants
Technical Specifications
Flow Range
500 – 15,000 CFM
Pressure Drop
100 – 300 mm WC
Media Bed Depth
12 – 36 inches
Removal Efficiency
Up to 95–99%
Operating Temperature
Up to 120°C
Dust Collectors – Cyclone & Bag Filter Type
Our high-efficiency dust collection systems are designed for effective control of airborne dust
and particulate matter in industrial and laboratory environments. We offer both cyclone
separators for coarse dust and bag filter systems for fine particulate matter. Dual-stage systems
(cyclone + bag filter) are also available for maximum efficiency where high dust loads are
present.
Materials of Construction
PP+FRP
For chemical dust applications
MS+FRP
For general industrial use
Stainless Steel (SS 304)
For hygienic or corrosive applications
Type A
Cyclone Dust Collector
Uses centrifugal force to separate larger dust particles from the air stream. Dust-laden air enters
tangentially, creating a vortex that throws heavier particles against the wall where they fall into a
collection hopper. Clean air exits from the top. No filter media required – ideal for preliminary
filtration or for coarse dust applications.
Key Features
- No filter media – no replacement costs
- Low maintenance – no moving parts
- Handles high dust loads without clogging
- Suitable for high-temperature applications up to 400°C
- Collection efficiency: 70-90% for particles >10 microns
- Available in mild steel, stainless steel, or abrasion-resistant lining
Applications
- Woodworking and furniture manufacturing – sawdust and wood chips
- Metal grinding and polishing – metal shavings and dust
- Cement and construction materials – cement dust, sand, gravel
- Grain processing – grain dust and husks
- Recycling industry – paper, plastic, and metal fines
Type B
Bag Filter Dust Collector
Uses fabric filter bags to capture fine particulate matter with high efficiency. Dust-laden air
passes through filter bags where dust accumulates on the outer surface. A pulse-jet cleaning
system uses compressed air to periodically blow dust off the bags into the collection hopper.
Efficiency up to 99.9% for sub-micron particles.
Key Features
- Pulse-jet reverse air cleaning – automatic and continuous
- Easy bag replacement from clean side – no dust exposure
- Hopper with rotary airlock or discharge valve
- Explosion venting option for combustible dust (NFPA compliant)
- Customizable filtration area from 500 to 50,000+ CFM
- Bag materials: polyester, polypropylene, Nomex, PTFE, fiberglass
- Differential pressure gauge for monitoring
- Available in mild steel, stainless steel, or epoxy-coated
Applications
- Pharmaceutical powder handling – API, excipients, tablets
- Fine chemical dust – hazardous and toxic dusts
- Food processing – flour, sugar, spice, starch dust
- Welding and plasma cutting – fine metallic fumes
- Battery manufacturing – electrode material dust
Technical Specifications (Bag Filter)
Flow Range
500 – 50,000 CFM
Air-to-Cloth Ratio
2:1 to 6:1
Filtration Efficiency
Up to 99.9% (0.5 micron and above)
Pressure Drop
100 – 250 mm WC
Operating Temperature
Up to 200°C (depending on bag material)
Centrifugal Blowers – Direct & Belt Driven
High-performance centrifugal blowers engineered for continuous industrial operation. Our
blowers are designed to handle clean or contaminated air streams, corrosive fumes, and
high-temperature gases. Precision-balanced impellers ensure vibration-free operation and long
bearing life. All blowers are dynamically balanced and tested before dispatch. We offer both
forward-curved, backward-curved, and radial tip impeller designs to suit specific pressure and
flow requirements.
Type A
Direct Driven Blowers
Motor directly coupled to the impeller shaft. Compact design with no belts to replace or adjust.
Suitable for constant speed applications where airflow adjustment is not frequently required.
Key Features
- Compact design – saves space
- No belt replacement or tensioning
- Higher efficiency due to direct power transmission
- Lower maintenance
- Speed can be adjusted with VFD (variable frequency drive)
- Available in 1 HP to 50 HP
Type B
Belt Driven Blowers
Motor connected to the impeller shaft via pulleys and V-belts. Allows adjustable airflow by
changing pulley sizes. Better for high-static pressure applications and where motor replacement
needs to be simple.
Key Features
- Adjustable airflow by changing pulley ratios
- Better for high static pressure (up to 800 mm WC)
- Easier motor replacement – no need to disconnect ductwork
- Motor isolation from high-temperature gas stream
- Available in 2 HP to 100 HP
Impeller Types
Forward Curved
Best For
Low pressure, high volume
Pressure Range
Up to 100 mm WC
Backward Curved
Best For
Medium to high pressure
Pressure Range
100 – 500 mm WC
Radial Tip
Pressure Range
High pressure, dust-laden air
Pressure Range
300 – 800 mm WC
Materials of Construction
PP+FRP
For corrosive fume handling
MS+FRP
For general industrial exhaust
Stainless Steel (SS 304)
For hygienic or high-temperature applications
Key Features
- Static pressure up to 800 mm WC
- Airflow from 500 CFM to 50,000+ CFM
- Corrosion-resistant options for acid fumes
- Spark-resistant construction (aluminum or bronze impeller) for flammable gases
- Low noise levels – balanced impeller and insulated casing option
- Thermal overload protection on motors
- IP55 motors for dust and moisture resistance
- Inlet and outlet flanges for easy duct connection
Applications
- Fume exhaust systems from scrubbers and hoods
- Dust collection systems as system fan
- Drying and conveying in industrial processes
- Combustion air supply for boilers and furnaces
- Ventilation systems for factories and warehouses
- Paint booth exhaust
Ducting Systems – Precision-Fabricated
Precision-fabricated ducting solutions for safe and efficient air movement in HVAC, fume
exhaust, chemical exhaust, and dust collection systems. Our ducts are manufactured using
advanced CNC bending, laser cutting, and welding equipment, ensuring leak-proof joints,
smooth internal surfaces for low friction loss, and consistent dimensions. We offer round,
rectangular, and square duct profiles in a wide range of materials.
Materials of Construction
PPFRP (Polypropylene + FRP)
Excellent chemical resistance, lightweight, UV stable
Best For
Chemical fume exhaust, acid fumes, laboratory exhaust
MS/GI Powder Coated
Durable, cost-effective, corrosion-resistant coating
Best For
General HVAC,
ventilation, industrial exhaust
Stainless Steel (SS 304 / SS 316)
Superior corrosion resistance, hygienic, high-temperature
tolerance
Best For
Clean rooms, pharmaceutical, food processing, corrosive environments
Galvanized Iron (GI) Ducts
Standard material for HVAC, cost-effective, rust-resistant
Best For
Air
conditioning, heating, ventilation
Duct Shapes
Round
Best For
Lowest friction loss, best for long runs, fume exhaust
Size Range
4″ to 36″ diameter
Rectangular
Best For
Space-constrained areas, under-ceiling installation
Size Range
Any custom size
Square
Best For
Easy to fabricate, good for short runs
Size Range
Any custom size
Key Features
- Custom sizes as per site requirements
- Flanged or slip-joint connections for easy assembly
- Access doors for cleaning, inspection, and maintenance
- Fire-rated options for HVAC systems (as per NBC)
- Smooth internal finish for low friction loss (reduces fan power)
- Color coding for different systems (chemical, general, emergency)
- External insulation options for thermal and acoustic control
Applications
- HVAC air distribution in commercial and industrial buildings
- Laboratory fume exhaust from fume hoods
- Kitchen exhaust systems for commercial kitchens
- Dust collection networks in factories
- Paint booth exhaust systems
- Clean room air supply and return
- Chemical plant ventilation
| Installation Services |
|---|
| Site survey and duct routing design |
| Complete installation with hangers and supports |
| Leak testing and smoke testing |
| Thermal insulation application |
| ASHRAE standard compliance |
System Components
Straight Ducts
Standard lengths of 4ft, 8ft, or custom
Elbows (45°, 90°)
With turning vanes for smooth airflow
Reducers and Expanders
Transition between different sizes
Branches and Y-joints
For splitting or combining airflow
Dampers (manual or motorized)
Volume control, balancing, isolation
Flexible Connections
Vibration isolation between duct and fan
End Caps and Hoods
For termination points
Support Hangers and Brackets
Complete installation accessories
Quick Specifications Table – Pollution Control Systems
| Product | Flow Range | Efficiency | Materials | Key Application |
|---|---|---|---|---|
| Wet Scrubber | 500 – 50,000 CFM | Up to 99% | PP+FRP, MS+FRP, SS | Acid gases, chemical fumes |
| Dry Scrubber | 500 – 15,000 CFM | Up to 95–99% | MS+FRP, SS | VOCs, odors, low-volume acid gases |
| Bag Dust Collector | 500 – 5,000 CFM | 70–90% (>10µ) | MS, SS | Coarse dust, wood, metal, cement |
| Centrifugal Blower | 500 – 50,000+ CFM | up to 80-90% | PP+FRP, MS+FRP, SS | System fan for all above |
